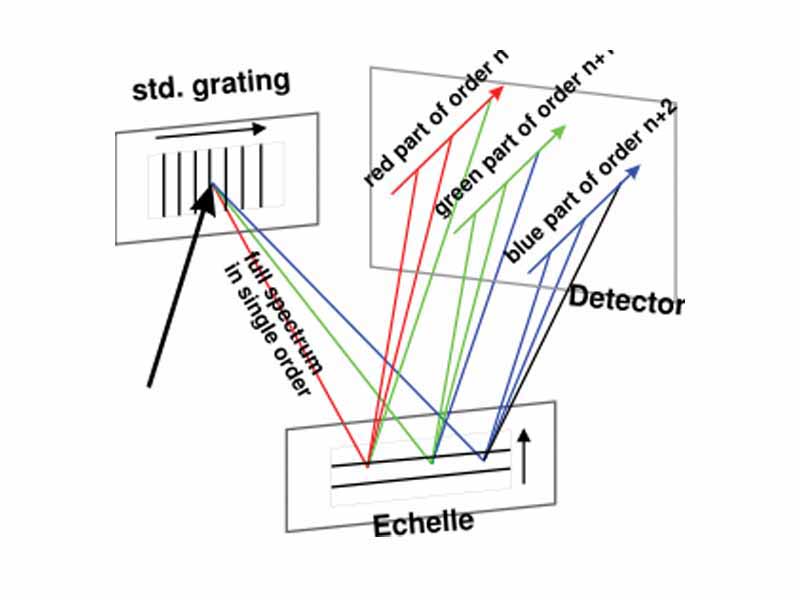

Échelle Spectrometer: The first standard grating is optimized for a single lower order, while multiple higher orders of the échelle have an optimized output intensity. Both diffractive elements are mounted orthogonally in such a way that the highly illuminated orders of the échelle are transversally separated. Since only parts of the full spectrum of each individual order lie in the illuminated region, only portions of the different orders overlap spectrally (i.e. green line in red portion).

Click this LINK to visit the original image and attribution information. Right click on the image to save the 800px teaching JPEG.



Échelle Spectrometer: The first standard grating is optimized for a single lower order, while multiple higher orders of the échelle have an optimized output intensity. Both diffractive elements are mounted orthogonally in such a way that the highly illuminated orders of the échelle are transversally separated. Since only parts of the full spectrum of each individual order lie in the illuminated region, only portions of the different orders overlap spectrally (i.e. green line in red portion).
