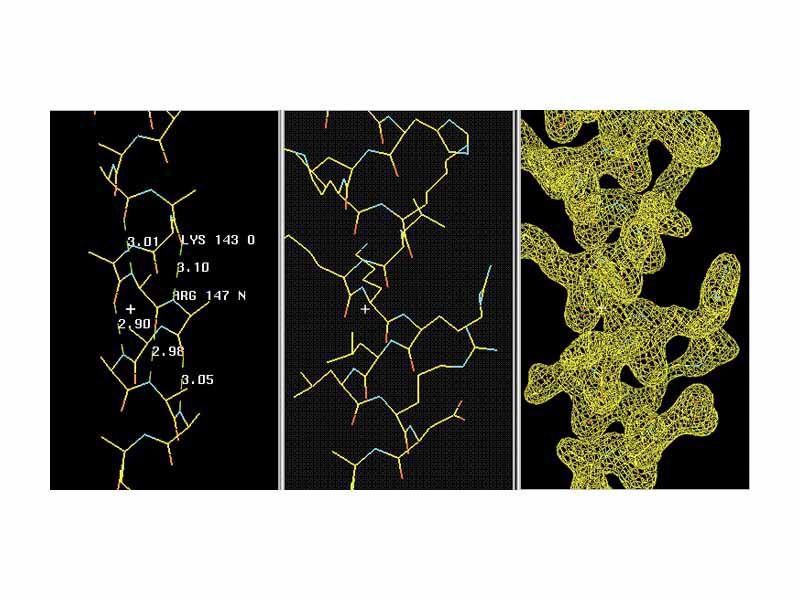

The left panel shows the hydrogen bonding in an actual ?-helix backbone. Note that the nth residue O (Lys 153) bonds to the (n+4)th following residue's N (Arg 147). The actual values of some displayed H-bond distances give you some idea about the variations to expect within a helix. The center panel includes the side chains which were omitted in the left panel for clarity. You see the side chains pointing towards the N-terminal of the chain (lower residue numbers) and thus it is usually possible to determine the direction of the helix quite well during initial model building. A 0.2 nm electron density is shown in the right panel

Click this LINK to visit the original image and attribution information. Right click on the image to save the 800px teaching JPEG.



The left panel shows the hydrogen bonding in an actual ?-helix backbone. Note that the nth residue O (Lys 153) bonds to the (n+4)th following residue's N (Arg 147). The actual values of some displayed H-bond distances give you some idea about the variations to expect within a helix. The center panel includes the side chains which were omitted in the left panel for clarity. You see the side chains pointing towards the N-terminal of the chain (lower residue numbers) and thus it is usually possible to determine the direction of the helix quite well during initial model building. A 0.2 nm electron density is shown in the right panel
